868x
The RFD868x is a high‑performance 868 MHz ISM band data modem for long‑range telemetry, delivering up to 224 kbit/s and AES hardware encryption.
- Price
- Price on request
- Availability
- In production
- Origin
- Collected automatically
- Source
- Manufacturer page (rfdesign.com.au) +1 more
- Retrieved
- 25 Sept 2026
- Last checked
- 25 Sept 2026
- Report
- Report an error or request removal
Designed for industrial telemetry and data transfer, the RFD868x supports MavLink communications and can achieve over 40 km of line‑of‑sight range with suitable antennas. It offers AES hardware acceleration, optional RC PPM or SBUS passthrough, GPIO mirroring, RF front‑end filtering, and ESD‑protected I/O pins. Firmware is user‑updatable to enable point‑to‑point, mesh, and asynchronous mesh topologies.
Performance
- Range
- 40km
Source
- Source
- Manufacturer page
- Retrieved
- 25 Sept 2026
- Last reviewed
- 25 Sept 2026
- Confidence
- Medium · 80%
Collected automatically from the source; not reviewed yet.
Physical
- Weight
- 0kg
Source
- Source
- Manufacturer page
- Retrieved
- 25 Sept 2026
- Last reviewed
- 25 Sept 2026
- Confidence
- Medium · 80%
Collected automatically from the source; not reviewed yet.
- Dimensions
- 30 mm × 57 mm × 12.8 mm
Source
- Source
- Manufacturer page
- Retrieved
- 25 Sept 2026
- Last reviewed
- 25 Sept 2026
- Confidence
- Medium · 80%
Collected automatically from the source; not reviewed yet.
Communications
- Datalink
- Line of sight, Mesh
Source
- Source
- Manufacturer page
- Retrieved
- 25 Sept 2026
- Last reviewed
- 25 Sept 2026
- Confidence
- Medium · 80%
Collected automatically from the source; not reviewed yet.
- Encryption
- Hardware accelerated AES
Source
- Source
- Manufacturer page
- Retrieved
- 25 Sept 2026
- Last reviewed
- 25 Sept 2026
- Confidence
- Medium · 80%
Collected automatically from the source; not reviewed yet.
- Interfaces
- 2 x RP‑SMA antenna connectors
Source
- Source
- Manufacturer page
- Retrieved
- 25 Sept 2026
- Last reviewed
- 25 Sept 2026
- Confidence
- Medium · 80%
Collected automatically from the source; not reviewed yet.
Environment
- Min. operating temp.
- -40°C
Source
- Source
- Manufacturer page
- Retrieved
- 25 Sept 2026
- Last reviewed
- 25 Sept 2026
- Confidence
- Medium · 80%
Collected automatically from the source; not reviewed yet.
- Max. operating temp.
- 85°C
Source
- Source
- Manufacturer page
- Retrieved
- 25 Sept 2026
- Last reviewed
- 25 Sept 2026
- Confidence
- Medium · 80%
Collected automatically from the source; not reviewed yet.
Power
- Battery / fuel
- +5 V nominal, 1.2 A peak at max transmit
Source
- Source
- Manufacturer page
- Retrieved
- 25 Sept 2026
- Last reviewed
- 25 Sept 2026
- Confidence
- Medium · 75%
Collected automatically from the source; not reviewed yet.
Compliance/certification
- NDAA compliant
- Yes
Source
- Source
- Manufacturer page
- Retrieved
- 25 Sept 2026
- Last reviewed
- 25 Sept 2026
- Confidence
- High · 90%
Collected automatically from the source; not reviewed yet.
- Country of origin
- AU
Source
- Source
- Manufacturer page
- Retrieved
- 25 Sept 2026
- Last reviewed
- 25 Sept 2026
- Confidence
- Medium · 75%
Collected automatically from the source; not reviewed yet.
- Manufactured in
- AU
Source
- Source
- Manufacturer page
- Retrieved
- 25 Sept 2026
- Last reviewed
- 25 Sept 2026
- Confidence
- Medium · 80%
Collected automatically from the source; not reviewed yet.
- Certifications
- FCC, FCC Part 15.247, AS/NZS 4268:2012, IEC 62368-1:2014
Source
- Source
- Unknown source
- Retrieved
- 25 Sept 2026
- Last reviewed
- 25 Sept 2026
- Confidence
- High · 90%
Collected automatically from the source; not reviewed yet.
General
- Maximum Air data rate
- 224kbit/s.
- AS/NZS 4268
- 2012 (Radio equipment and systems – short-range devices
- Air Data transfer rates available
- 12, 56, 64, 100, 125, 200, 188 and 224 kbit/sec (User settable depending on firmware and region variant, 64kbit default)*
- UART data transfer rates
- 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 1200000 baud (User settable, 57600 default)*
- Temp. Range
- -40 to +85 deg C
- RF
- 2x u.FL RF connectors
- Serial
- Logic level TTL (+3.3V)
- Power Input
- +5v, ~1.2A max peak (at maximum transmit power)
- GPIO
- 6 General purpose IO (Digital, PWM/SBUS capable).
- IEC 62368-1
- 2014
- Mon – Fri
- 8am – 5pm
- Ndaacompliant
- Yes
- countryOfOrigin
- Australia
- Max Air Data Rate
- 224 kbit/s
- Output Power
- 30 dBm (1 W)
- Receive Sensitivity
- >‑102 dBm at 12 kbps
- Frequency Band
- 865–870 MHz
- Channels
- 1
- Maximum Duty Cycle
- 100%
- Size
- 30 mm × 57 mm × 12.8 mm
- Weight (Bare)
- 0.007kg
- Temperature Range
- -40 °C to +85 °C
- RF Connectors
- 2 × RP‑SMA
- Serial Level
- TTL (3.3 V)
- GPIO Count
- 6
- Optional RC PPM/SBUS Passthrough
- Yes
868x-EU (Europe)
- Maximum Transmit Power(dBm)
- 27/7 Frequency Band/s (MHz): 869.7-870 Number of Channels: 1 Max Duty Cycle (%): 10/100
Values are normalised to SI-style units. Open a value's source marker for provenance and confidence. Additional specifications are shown as published by the source, without unit conversion. Spotted an error? Report it to us, tell the manufacturer or claim this listing.
- Software & SDKs
- SiK firmware
Ask RFDesign about 868x
AL1 Spotlight

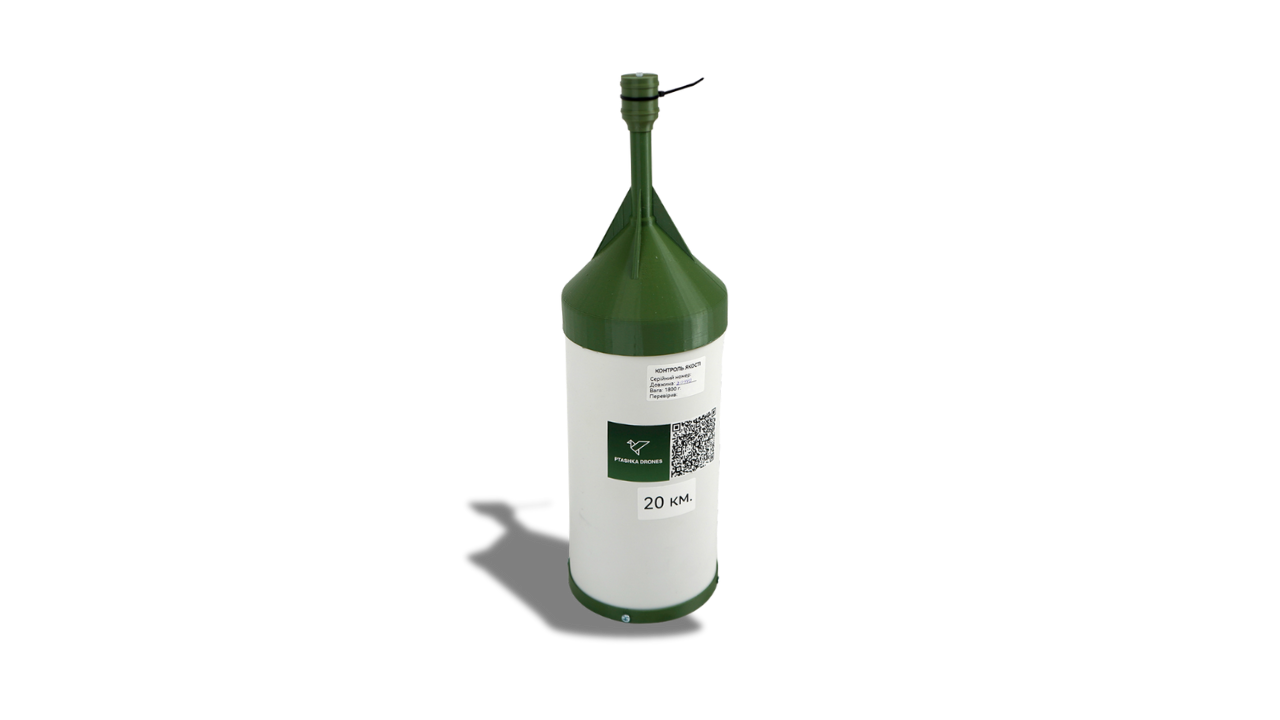

Coil 20 km
